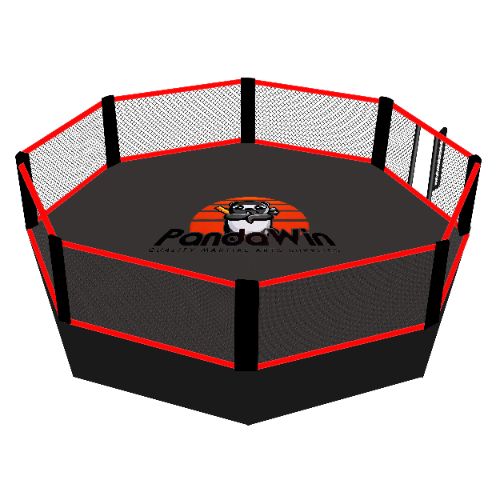

OEM Octagonal Cage Design Considerations for Enhanced Equipment Performance

Every edge matters in an octagonal cage—but most OEM designs overlook the subtle geometry that separates a stiff, energy-sapping frame from one that returns force to the athlete. At PandaWin Sports, we've seen how a few degrees of angle or a poorly chosen corner joint can turn a high-performance training tool into a liability. This post breaks down the real design considerations behind octagonal cage performance: load distribution, weld fatigue, and the material trade-offs that decide whether your equipment holds up under repeated impact—or quietly fails when it matters most.

Structural Advantages of Eight-Sided Geometry

The eight-sided form distributes load paths more evenly than rectangular or circular alternatives, reducing stress concentrations at corners and midpoints. This balanced force distribution allows thinner wall sections to carry the same loads, trimming material weight without sacrificing rigidity. When pressure acts on any face, the adjacent faces share the burden through angular continuity, creating a structure that behaves more like a monocoque than a collection of joined panels.

Torsional stiffness is another quiet benefit. A regular octagon resists twisting by engaging multiple non-parallel faces simultaneously, whereas a square tube relies heavily on its four corners. This makes eight-sided sections particularly effective in applications where off-axis loads or twisting moments are common, such as cantilevered arms, rotating machinery housings, and lightweight frame connectors. The geometry also suppresses buckling modes that plague thinner flat plates, because the 135-degree internal angles break up long uninterrupted flat spans.

From a fabrication perspective, eight facets create natural indexing points for welding, fastening, or composite layup. Unlike a smooth cylinder, you always know where the neutral axes lie, and unlike a square, you gain four extra orientations for mounting brackets or routing channels. This reduces fixturing complexity and allows designers to align structural features with load directions without introducing eccentricities. The result is a shape that balances isotropic strength with practical manufacturability—a rare combination in structural geometry.

Material Choices that Withstand Mechanical Stress

When a part has to survive repeated loading, the choice of material often comes down to more than just tensile strength. A crankshaft, for instance, needs enough surface hardness to resist wear at the bearing journals, but it also has to flex slightly under torsional peaks without initiating cracks. That pushes many designers toward forged medium-carbon steels, which can be induction hardened only where needed. The same logic explains why an aluminum bracket might be perfectly fine for a static shelf bracket yet fail quickly in a vibrating pump housing—its fatigue limit drops off far more sharply than steel's once stress amplitudes climb.

Microstructure matters just as much as composition. Two bars of 4140 steel with identical chemistry can behave completely differently if one is quenched and tempered to a fine martensite while the other is left with coarse pearlite. The tempered bar might survive millions of cycles at a stress that would tear the pearlitic bar apart in a few thousand. In polymers, similar principles apply: adding short glass fibers to nylon boosts stiffness and creep resistance, but it also creates internal stress concentrations at fiber ends, so the part may become more notch-sensitive. Designers often overlook that trade-off, then blame the material when a sharp corner cracks.

Testing protocols and safety factors are the final arbiters. A material can look great on a datasheet—high yield strength, impressive elongation—but if the actual loading includes occasional impact at low temperature, Charpy data from the supplier becomes the deciding factor. Many offshore components are specified not by their room-temperature properties but by their performance at -40°C. And for parts that see millions of small-amplitude cycles, like suspension springs or valve springs, shot peening or surface rolling can shift the fatigue limit upward far more than switching to a slightly stronger alloy. The best material choice is rarely the strongest on paper; it's the one that aligns with the real stress history, the manufacturing route, and the inspection budget.

Ventilation Patterns for Thermal Regulation

Animals in hot environments often shift from slow, deep breaths to rapid, shallow panting. This change raises airflow across moist surfaces of the mouth and upper airways without blowing off too much carbon dioxide. The tongue may loll out, and blood vessels dilate, turning the respiratory tract into a cooling radiator. By keeping breaths shallow, the body avoids the dangerous drop in blood pH that would come from hyperventilating.

Some species rely on gular fluttering, a vibration of the throat muscles that moves air back and forth over the buccal cavity. Birds like pelicans and herons use this method, which consumes far less energy than heavy chest breathing. The flutter rate can reach several hundred cycles per minute, yet each pulse of air covers only a short distance, enough to strip heat from wet membranes without disturbing the main respiratory rhythm.

Nocturnal desert dwellers, such as kangaroo rats, reduce ventilation during the day and increase it at night when the air is cooler and more humid. This temporal shift prevents water loss during peak heat. In burrows, the surrounding soil acts as a thermal buffer, so the animal can afford slower breathing without risking overheating. The pattern emerges as a trade-off between evaporative cooling and water conservation, tuned to the daily cycle of ambient temperature.

Precision Machining and OEM Tolerance Alignment

When a machine shop receives a part drawing from an OEM, the tolerance blocks often look straightforward on paper. But in practice, hitting ±0.005 mm on a turned diameter while holding a parallel bore within 0.01 mm across a 200 mm length demands more than just a tight machine. It forces a conversation about how those numbers interact. A surface ground after turning can shift a previously held dimension. Thermal growth from a long roughing cycle can push a finish pass out of spec. Alignment starts with reading the drawing not as isolated callouts, but as a system where each feature influences its neighbor.

OEM engineers sometimes default to tighter tolerances than the function actually requires. That creates unnecessary cost and scrap without improving performance. Shops that push back with data, not opinions, get better results. For example, if a bearing seat is called out at H7 but the mating component is consistently produced near its low limit, a slightly wider H8 might still guarantee interference without the extra grinding passes. Sharing in-process measurement logs, CMM reports, and even photos of tool wear at specific feature transitions helps both sides agree on what “aligned” really means for the assembly, not just the print.

The most productive OEM partnerships treat tolerance alignment as a two-way street. The shop learns which dimensions drive function and which are simply legacy values copied from an older revision. The OEM learns what the shop’s equipment can hold comfortably versus where it strains. Sometimes a minor design tweak, like adding a relief groove before a threaded section or specifying a different datum order, removes an entire setup and cuts variation in half. That kind of alignment doesn’t happen through email threads alone. It comes from reviewing first-article results together, walking the process steps, and adjusting before production ramps up.

Corrosion Resistance Through Surface Engineering

Corrosion rarely starts from the bulk material; it begins at the surface, where moisture, chlorides, or aggressive ions first make contact. Surface engineering shifts the battle to that interface by altering composition, microstructure, or residual stress. Instead of relying on a single thick barrier, modern approaches often combine a sacrificial underlayer with a dense topcoat, so that if the outer layer is breached, the galvanic couple still protects the substrate.

Processes such as anodizing, thermal spraying, and physical vapor deposition create layers that do more than block water. Anodized aluminum, for example, grows a nano-porous oxide that can be sealed with corrosion inhibitors, turning a passive film into an active reservoir. Thermal-sprayed zinc or aluminum alloys act as sacrificial anodes on steel structures, consuming themselves while keeping the base metal intact in marine splash zones.

Recent work is pushing beyond static coatings toward surfaces that respond to local pH shifts or mechanical damage. Layered double hydroxides loaded with organic inhibitors release their payload only when corrosion starts, minimizing leaching. Meanwhile, laser texturing is being used to control wettability, reducing the contact time of salt-laden droplets on turbine blades and heat exchangers. These approaches treat corrosion not as a single event but as a series of electrochemical triggers that can be interrupted at the surface.

Dynamic Load Distribution Across Cage Walls

In a running bearing, the cage is rarely subjected to a uniform load. Forces from the rolling elements arrive as a series of rapid, localized impacts, and their magnitude shifts depending on speed, radial clearance, and load zone. As the cage rotates through the loaded and unloaded regions, the distribution of stress across its walls changes constantly. The highest contact pressures often concentrate near the pocket corners and the transitions between the bar sections and side rings, rather than spreading evenly along the entire wall.

Centrifugal effects add another layer of complexity. At elevated speeds, the cage expands outward and may press more firmly against the outer ring land, altering the load path. Meanwhile, the rolling elements can tilt or skid within their pockets, creating secondary forces that migrate from one wall face to the other. These shifting contact patterns mean that a static assumption of balanced loading is rarely valid. Instead, the cage walls experience a dynamic redistribution that can push stress peaks into areas not anticipated by simple hand calculations.

Detailed multibody simulations and strain measurements on instrumented cages have shown that the load distribution across the cage walls follows a repeating but asymmetrical cycle. The pattern is influenced by pocket clearance, lubrication conditions, and the guiding surface geometry. Modest changes in pocket profile or land clearance can shift the peak stress away from vulnerable edges, improving fatigue life without altering the overall bearing envelope. Understanding this dynamic behavior helps engineers avoid overdesign in some regions while reinforcing only those wall sections that truly need it.

FAQ

Conclusion

The eight-sided cage geometry does more than look distinctive—it resists deformation under multidirectional strain by eliminating the weak corner stress concentrations common in four-sided frames. In OEM equipment where precision and longevity dictate performance, this configuration allows each wall segment to share load more evenly, reducing fatigue points that often emerge after prolonged vibration or impact. Material selection becomes a deliberate balance: high-grade alloys or reinforced composites must endure mechanical stress without adding unnecessary mass, since every gram affects dynamic response and energy efficiency. Equally critical is ventilation design; octagonal layouts enable strategically placed perforations that promote laminar airflow across heat-generating components, preventing thermal buildup that accelerates wear. Rather than relying on generic slot patterns, OEM engineers can tailor aperture size and spacing to match the specific thermal signature of the enclosed assembly, ensuring that cooling does not compromise structural integrity.

Precision machining underpins every benefit of this geometry. Tight OEM tolerance alignment across eight faces demands advanced CNC processes and in-process metrology, yet the payoff is a cage that fits seamlessly with mating parts and maintains consistent gap dimensions under load. Surface engineering further elevates reliability: treatments such as anodizing, electroless nickel plating, or ceramic coating provide corrosion resistance suited to harsh operating environments, from marine humidity to chemical exposure. Combined with dynamic load distribution analysis, these considerations transform the octagonal cage from a static enclosure into an active contributor to equipment uptime. The result is not merely a protective shell but a tuned structural system—one that dissipates stress, regulates temperature, and resists environmental attack while preserving the exacting tolerances that OEM applications demand.
