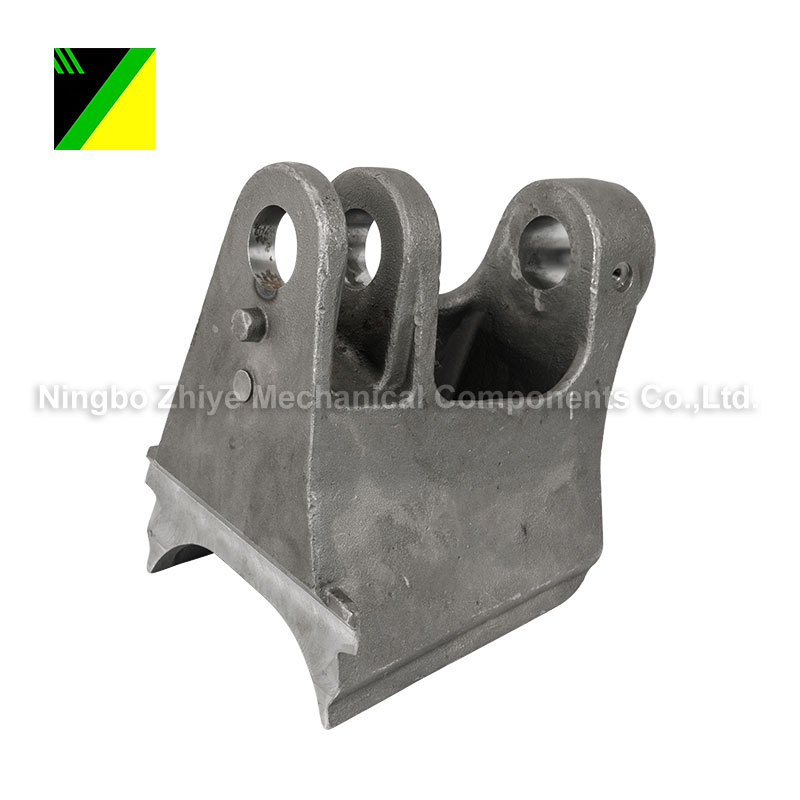

The Brief Introduction to Water Glass Investment Casting for Construction Bracket


Water glass investment casting, also known as sodium silicate investment casting, is a type of casting process used to create intricate and detailed metal parts. It is a process that involves the use of a refractory material, usually made from a mixture of silica sand and binder, to create a mold around a wax pattern. The wax pattern is then melted out of the mold, leaving a hollow space in the shape of the desired metal part. Once the mold is created, a slurry made from a mixture of water glass (sodium silicate) and refractory materials is poured into the mold. This slurry hardens and forms a solid shell around the wax pattern. The mold is then heated to a high temperature, causing the wax to melt and flow out of the mold, leaving behind a hollow cavity in the shape of the original wax pattern.

The molten metal is then poured into the mold and allowed to solidify. Once the metal has cooled and solidified, the refractory mold is broken away, leaving behind the finished metal part. Water glass investment casting is often used to create parts with complex geometries, intricate details, and tight tolerances. It is commonly used in the production of industrial parts, aerospace components, and medical implants.

There are several advantages of using water glass investment casting for creating metal parts.

1. Complex geometries: This method allows the creation of intricate and complex shapes and geometries that are difficult to achieve with other casting methods.

2. High accuracy: Water glass investment casting can achieve high dimensional accuracy and tight tolerances, which is important for parts that require precise measurements.

3. Wide range of materials: This method can be used to cast a wide range of materials, including steel, stainless steel, aluminum, copper, and more.

4. High surface finish: Water glass investment casting produces high-quality surface finishes that require minimal machining, saving time and money.

5. Cost-effective: This method is relatively cost-effective for small to medium-sized production runs, making it an attractive option for manufacturers looking for an efficient and economical casting process.

6. Reduction in material waste: As the molds are made from a mixture of silica sand and binder, they can be reused multiple times, thereby reducing material waste.

Overall, water glass investment casting is a versatile and efficient casting process that offers a high degree of accuracy and surface finish, making it a preferred method for many industries.
