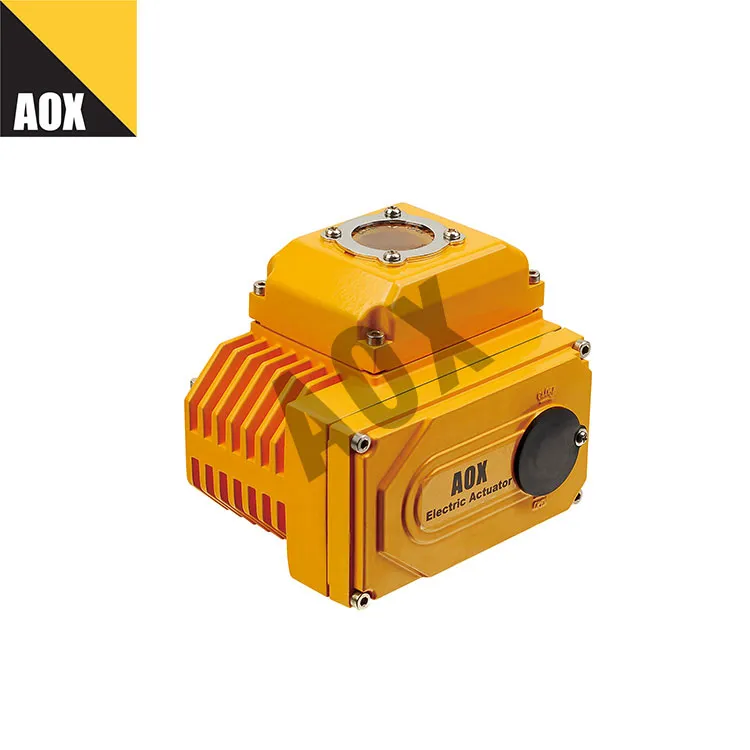

Characteristics of Waterproof Part Turn Electric Actuator

A waterproof part turn electric actuator is a type of actuator designed to provide precise control for applications requiring rotary movement, often in harsh or outdoor environments where exposure to water or moisture is a concern. Here are the key characteristics of a waterproof part turn electric actuator:

1. Waterproofing and Durability

- Waterproof Rating: Designed to meet high waterproof standards, typically specified by IP (Ingress Protection) ratings such as IP67 or IP68, indicating resistance to dust and water ingress.

- Corrosion-Resistant Materials: Constructed from materials that resist corrosion, such as stainless steel or specially coated metals, to withstand exposure to moisture and harsh environments.

- Sealed Housing: Features a fully sealed housing that protects internal components from water, dust, and other contaminants.

2. Actuation Type

- Part Turn Function: Provides rotary movement over a limited range, often between 90 to 180 degrees. This is suitable for applications such as valve control, where a full rotation is not required.

- Precision Control: Allows for precise control of the angular position, with adjustable limits for the range of motion.

3. Electric Drive

- Electric Motor: Powered by an electric motor that drives the rotary movement. Electric actuation offers precise control and can be easily integrated with control systems.

- Control Options: Can be operated through various control mechanisms, including manual switches, programmable controllers, or remote control systems.

4. Torque and Speed

- Torque Capacity: Designed to handle specific torque requirements based on the application. The torque capacity should be matched to the load or resistance in the application.

- Adjustable Speed: Some models offer adjustable speed settings for the rotary movement, allowing for fine-tuning of the operation.

5. Mounting and Installation

- Mounting Options: Equipped with mounting brackets or flanges for secure installation in various positions and orientations.

- Ease of Installation: Designed for straightforward installation, with clear instructions and compatibility with standard mounting configurations.

6. Control and Feedback

- Position Feedback: May include sensors or feedback mechanisms to provide information on the actuator’s position, ensuring accurate control and monitoring.

- Integration: Can be integrated with automated control systems for applications such as remote monitoring and control, often with support for various communication protocols.

7. Power Requirements

- Voltage Options: Available in various voltage options, including AC and DC, to match the power supply requirements of the application.

- Power Consumption: Designed to operate efficiently with minimal power consumption, contributing to overall energy efficiency.

8. Maintenance and Reliability

- Low Maintenance: Requires minimal maintenance due to its robust design and sealed components. Regular checks for wear and tear and system calibration are typically sufficient.

- Reliability: Built for reliable performance in challenging environments, with a focus on long-term durability and consistent operation.

9. Safety Features

- Overload Protection: Includes features such as overload protection to prevent damage to the actuator or associated equipment in the event of excessive torque or mechanical stress.

- Emergency Manual Override: Some models offer manual override options in case of power failure or system malfunction, allowing for manual operation.

10. Environmental Suitability

- Temperature Range: Designed to operate within a specific temperature range, ensuring functionality in various environmental conditions.

- UV and Chemical Resistance: May include features to resist UV radiation and exposure to chemicals, depending on the application environment.

11. Certifications and Standards

- Industry Certifications: Complies with relevant industry standards and certifications, ensuring reliability and performance in demanding applications.

- Quality Assurance: Manufactured under quality assurance programs to meet high standards for performance and durability.

Summary

Waterproof part turn electric actuators are designed for reliable and precise rotary motion in environments exposed to moisture and harsh conditions. They feature robust construction with high waterproof ratings, durable materials, and precise electric drive systems. With adjustable torque and speed, ease of installation, and integration with control systems, these actuators are suitable for various applications requiring reliable part-turn movement and environmental resilience.
