Features of DIN Rail Switching Power Supplies

2024-06-15

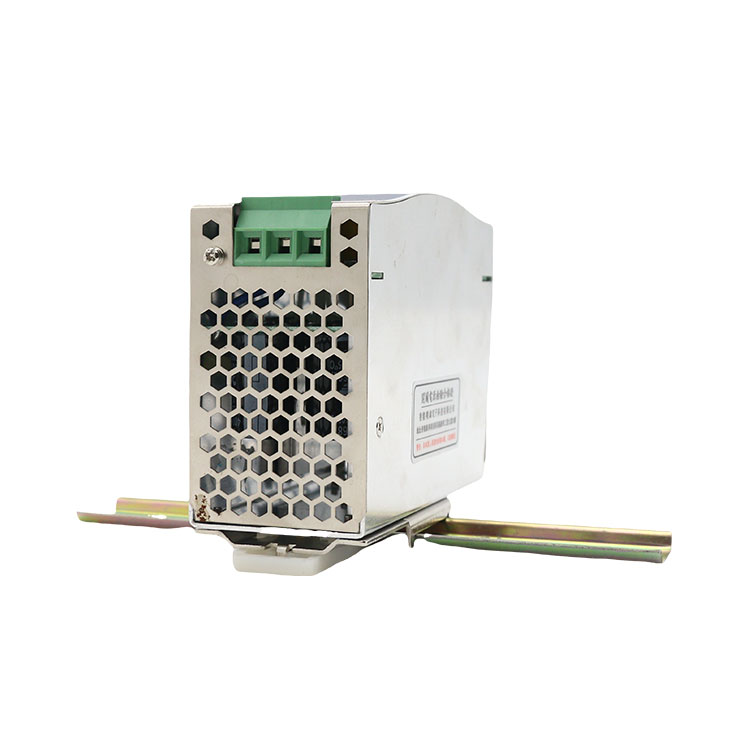

A DIN rail switching power supply is a type of power supply unit (PSU) designed to be mounted on a DIN rail, which is a standard mounting rail used in industrial control equipment and automation systems. These power supplies are essential for providing reliable and stable DC voltage to various electrical and electronic devices in industrial settings. Here’s an overview of DIN rail switching power supplies, their features, applications, and considerations:

Features of DIN Rail Switching Power Supplies

1. Mounting Compatibility:

  - DIN Rail Mountable: Designed to fit standard DIN rails (35 mm width), facilitating easy installation and integration into control panels and enclosures.

  - Snap-On or Screw Mounting: Typically secured to the DIN rail via snap-on or screw mounting mechanisms for stability.

2. Input Voltage Range:

  - Wide Input Range: Supports a wide range of input voltages (e.g., 100-240V AC), making them versatile for use in different regions and applications.

  - AC or DC Input: Available options for accepting AC mains voltage or DC input, depending on specific application requirements.

3. Output Voltage:

  - DC Output: Provides regulated DC output voltages commonly used in industrial applications (e.g., 12V DC, 24V DC).

  - Adjustable Output: Some models offer adjustable output voltages to accommodate various load requirements.

4. Power Ratings:

  - Range of Power Ratings: Available in various power ratings typically ranging from tens of watts to several hundred watts, depending on the application's power demands.

  - High Efficiency: Designed for high efficiency to minimize energy consumption and heat generation.

5. Protection Features:

  - Overcurrent Protection: Automatically shuts down or limits output current in case of overload conditions.

  - Overvoltage Protection: Prevents output voltage from exceeding safe limits, safeguarding connected devices.

  - Short Circuit Protection: Ensures the PSU shuts down during a short circuit to prevent damage.

6. Cooling and Reliability:

  - Cooling Methods: Utilizes passive cooling (natural convection) or active cooling (fan-assisted) depending on power rating and environmental conditions.

  - MTBF (Mean Time Between Failures): High MTBF ratings ensure reliability and longevity in continuous operation.

7. Compact and Enclosed Design:

  - Space Efficiency: Compact form factor suitable for installation in tight spaces within control cabinets and enclosures.

  - Enclosed Construction: Protects internal components from dust, moisture, and other environmental factors.

Applications of DIN Rail Switching Power Supplies

1. Industrial Automation:

  - Powering PLCs (Programmable Logic Controllers), HMI (Human Machine Interface) panels, sensors, and actuators.

2. Control Systems:

  - Providing stable power for relays, switches, motor controls, and other electronic components in control panels.

3. Telecommunications:

  - Powering communication equipment, data centers, and networking devices requiring reliable DC voltage.

4. Renewable Energy:

  - Integrating with solar inverters, wind turbines, and battery storage systems to manage and regulate DC power.

5. Test and Measurement:

  - Powering test equipment, instrumentation, and devices used in laboratories and research facilities.

Considerations When Choosing DIN Rail Switching Power Supplies

1. Voltage and Current Requirements:

  - Ensure the PSU provides the correct output voltage and sufficient current capacity for all connected devices.

2. Environmental Conditions:

  - Choose models with appropriate temperature ratings, ingress protection (IP rating), and resistance to vibration if installation is in harsh environments.

3. Certifications:

  - Verify compliance with relevant safety standards (e.g., UL, CE) and certifications for use in specific industrial applications.

4. Reliability and Warranty:

  - Select reputable brands known for reliability and offering warranties that match the operational requirements of your application.

5. Future Expansion:

  - Consider scalability and future expansion needs when selecting the power supply to accommodate potential growth in equipment or load requirements.

Popular Brands and Models

1. Mean Well DIN Rail Power Supplies:

  - Known for a wide range of models including DR, HDR, and DRC series, offering various power ratings and features.

2. Phoenix Contact DIN Rail Power Supplies:

  - Offers robust and reliable PSUs under the Quint, Trio, and MINI series, designed for industrial applications.

3. Weidmüller DIN Rail Power Supplies:

  - Provides compact and efficient power supplies suitable for automation and control systems.

4. Omron DIN Rail Power Supplies:

  - Offers high-quality PSUs under the S8VK series with wide input ranges and extensive protection features.

5. Schneider Electric DIN Rail Power Supplies:

  - Provides versatile PSUs under the ABL7 and Phaseo series, catering to diverse industrial and automation needs.

Maintenance and Installation Tips

- Follow Manufacturer Guidelines: Adhere to installation instructions and maintenance guidelines provided by the manufacturer.

- Regular Inspection: Periodically check for dust buildup, proper ventilation, and signs of wear or damage.

- Keep Documentation: Maintain records of installation dates, service history, and any modifications made to the power supply system.

Conclusion

DIN rail switching power supplies are essential components in industrial automation and control systems, providing reliable and regulated DC voltage to critical electronic devices. Understanding their features, applications, and considerations ensures you select the right PSU for your specific industrial needs, ensuring efficient operation, longevity, and protection of equipment. By choosing reputable brands and following proper installation and maintenance practices, you can maximize the performance and reliability of your DIN rail switching power supply system.
