Understanding C Frame Press Machines: A Comprehensive Guide

In the world of manufacturing and metalworking, the right equipment can significantly enhance efficiency and precision. Among the essential tools in this field is the C frame press machine. Renowned for its versatility and robust construction, the C frame press plays a crucial role in various industrial applications, including stamping, forming, and assembly processes. In this blog, we will explore the features, advantages, applications, and considerations of using a C frame press machine.

What is a C Frame Press Machine?

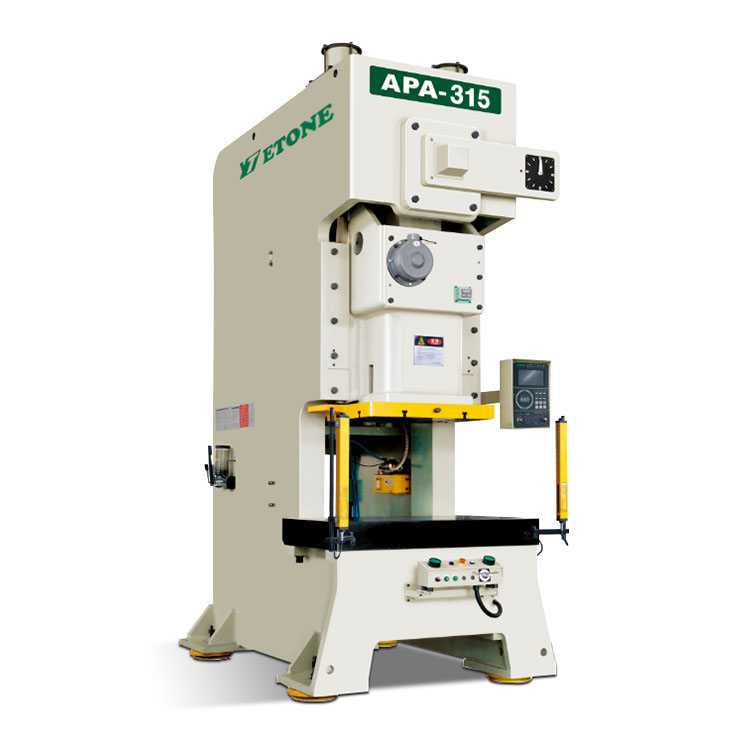

A C frame press machine is a type of mechanical press characterized by its distinctive C-shaped frame. This design allows for easy access to the work area, enabling operators to load and unload materials with minimal effort. C frame presses are typically used for moderate to heavy-duty applications and are available in various sizes, tonnages, and configurations to suit different manufacturing needs.

Key Features of C Frame Press Machines

1. C-Shaped Design

  The open frame design provides unobstructed access to the work area, making it easy for operators to position and remove workpieces. This design also allows for the installation of tooling and dies without hindrance.

2. Adjustable Stroke Length

  Many C frame presses feature adjustable stroke lengths, enabling operators to customize the depth of the press for different applications. This flexibility is beneficial when working with materials of varying thicknesses.

3. Robust Construction

  Built to withstand high pressures, C frame presses are constructed from durable materials, ensuring longevity and reliability even under heavy use. The sturdy frame helps maintain precision during operation.

4. Varied Tonnage Options

  C frame presses come in a range of tonnages, allowing manufacturers to select the appropriate model based on the specific requirements of their projects. This versatility makes them suitable for a wide variety of applications.

5. Safety Features

  Modern C frame press machines are equipped with safety features such as emergency stop buttons, safety guards, and sensors to prevent accidents and protect operators.

Advantages of Using C Frame Press Machines

1. Versatility

  C frame presses can be used for a variety of applications, including stamping, bending, punching, and forming, making them a valuable addition to any manufacturing facility.

2. Precision and Consistency

  The robust design and adjustable features allow for accurate and consistent results, ensuring that each piece produced meets the required specifications.

3. Ease of Use

  The open-frame design and user-friendly controls make C frame presses easy to operate, reducing the learning curve for new operators.

4. Space Efficiency

  Compared to other types of presses, C frame presses often require less floor space, making them ideal for facilities with limited room.

5. Cost-Effective

  Given their versatility and durability, C frame presses can be a cost-effective investment for manufacturers, reducing the need for multiple specialized machines.

Applications of C Frame Press Machines

C frame press machines find applications across various industries, including:

- Automotive Manufacturing: Used for stamping metal parts, forming components, and assembling subassemblies.

- Electronics: Ideal for creating precise parts for devices, such as enclosures and connectors.

- Aerospace: Employed in the production of lightweight yet strong components.

- Metal Fabrication: Utilized in shaping and forming metal sheets for various applications.

- Consumer Goods: Used to produce parts for household appliances, furniture, and other products.

Considerations When Choosing a C Frame Press Machine

1. Tonnage Requirements

  Determine the tonnage needed based on the materials you will be working with and the types of applications you plan to perform.

2. Stroke Length

  Consider the stroke length that best suits your projects, especially if you’ll be working with materials of different thicknesses.

3. Quality and Brand

  Invest in a machine from a reputable manufacturer known for quality and reliability to ensure long-term performance and support.

4. Budget

  Assess your budget while considering the long-term benefits of the investment. Higher initial costs may lead to greater efficiency and lower operating costs over time.

5. Maintenance and Support

  Look for machines that offer easy maintenance and come with reliable customer support. This is essential for minimizing downtime and ensuring smooth operation.

Conclusion

C frame press machines are invaluable tools in the manufacturing and metalworking industries, offering versatility, precision, and durability. Their unique design and various features make them suitable for a wide range of applications, from automotive parts production to electronics fabrication. When selecting a C frame press, consider your specific needs, including tonnage, stroke length, and budget. With the right equipment, you can enhance your manufacturing processes, improve productivity, and achieve consistent quality in your products.
