Understanding the 1000Vdc NH0 PV Fuse Base: A Crucial Component for Solar Power Systems

As the world shifts towards renewable energy sources, solar power has become a prominent choice for clean and sustainable electricity generation. In solar photovoltaic (PV) systems, ensuring the safety and efficiency of electrical components is paramount. One essential component that plays a critical role in protecting these systems is the 1000Vdc NH0 PV fuse base. This blog will explore what a 1000Vdc NH0 PV fuse base is, its features, benefits, and its significance in solar power systems.

What is a 1000Vdc NH0 PV Fuse Base?

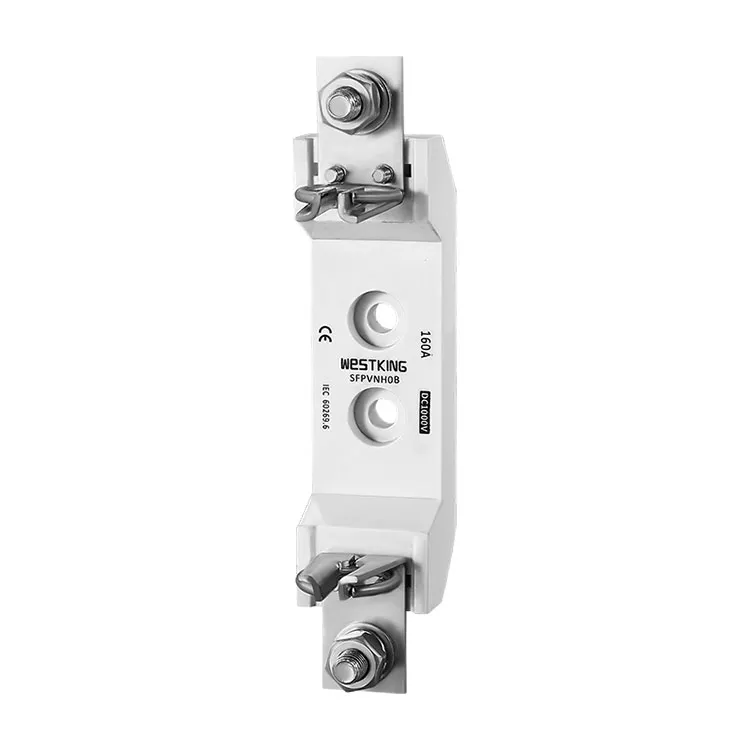

A 1000Vdc NH0 PV fuse base is a specialized fuse holder designed to accommodate PV (photovoltaic) fuses in solar power systems. The "1000Vdc" designation indicates that the fuse base is rated to handle up to 1000 volts of direct current (DC), which is a common voltage level in large-scale solar installations. The "NH0" refers to the fuse size and type, where NH (or NHG) indicates a specific fuse standard used for high-voltage applications, and "0" represents the size of the fuse.

Key Features of the 1000Vdc NH0 PV Fuse Base

1. High Voltage Rating:

  - The 1000Vdc rating allows the fuse base to handle high voltage levels commonly found in solar power systems. This capability ensures that it can safely manage the electrical demands of photovoltaic arrays.

2. NH0 Fuse Compatibility:

  - The NH0 designation specifies that the fuse base is compatible with NH0-sized fuses. NH0 fuses are designed for high-current and high-voltage applications, providing reliable protection for electrical circuits.

3. Durable Construction:

  - Typically constructed from robust materials such as insulated plastics or ceramics, the fuse base is designed to withstand harsh environmental conditions and ensure long-term reliability.

4. Secure Mounting:

  - The fuse base features secure mounting options to ensure that the fuse remains firmly in place during operation. This stability is crucial for maintaining proper protection and preventing accidental disconnections.

5. Easy Installation and Maintenance:

  - Designed for user-friendly installation, the 1000Vdc NH0 PV fuse base often includes features such as quick-connect terminals and clear labeling. This ease of use simplifies the installation and maintenance processes.

6. Compliance with Standards:

  - The fuse base typically meets industry standards and regulations for electrical safety and performance, ensuring its suitability for use in solar power systems.

Benefits of Using a 1000Vdc NH0 PV Fuse Base

1. Enhanced Safety:

  - The primary benefit of using a 1000Vdc NH0 PV fuse base is the enhanced safety it provides. By accommodating high-voltage fuses, it helps protect the electrical system from overcurrent conditions, short circuits, and potential damage.

2. Reliable Protection:

  - The fuse base ensures reliable protection by holding the fuse securely and maintaining proper electrical connections. This reliability is crucial for preventing electrical faults and ensuring the safe operation of the solar power system.

3. Versatility:

  - The 1000Vdc NH0 PV fuse base is versatile and suitable for various solar power applications, including residential, commercial, and industrial PV systems. Its compatibility with NH0 fuses makes it adaptable to different system requirements.

4. Long-Term Durability:

  - Built from durable materials, the fuse base is designed to withstand the rigors of outdoor environments and high-voltage operations. This durability contributes to the long-term performance and reliability of the solar power system.

5. Cost-Effective Solution:

  - By providing effective protection and reducing the risk of electrical faults, the fuse base contributes to the overall cost-effectiveness of the solar power system. It helps prevent costly repairs and downtime.

6. Regulatory Compliance:

  - Using a fuse base that meets industry standards ensures compliance with electrical safety regulations. This compliance is important for meeting legal requirements and achieving certification for solar power systems.

Applications of the 1000Vdc NH0 PV Fuse Base

1. Residential Solar Power Systems:

  - In residential solar installations, the fuse base is used to protect the inverter and other critical components from overcurrent conditions. It ensures safe operation and reliable performance of the solar array.

2. Commercial Solar Power Systems:

  - For commercial PV installations, the 1000Vdc NH0 PV fuse base provides protection for large-scale solar arrays and inverters. Its high voltage rating and durability make it suitable for demanding commercial applications.

3. Industrial Solar Power Systems:

  - In industrial settings, the fuse base is used to safeguard complex solar power systems with high voltage and current requirements. It helps maintain the integrity and safety of industrial solar installations.

4. Solar Inverter Protection:

  - The fuse base is commonly used in conjunction with solar inverters to protect against overcurrent and potential damage. It ensures that the inverter operates within safe electrical parameters.

5. PV Combiner Boxes:

  - In PV combiner boxes, the fuse base is used to protect the combined output of multiple solar strings. It helps manage the electrical flow and prevent faults in the combiner box.

Considerations for Using a 1000Vdc NH0 PV Fuse Base

1. Fuse Rating:

  - Ensure that the fuse used with the base matches the required voltage and current ratings for your solar power system. Proper fuse selection is essential for effective protection.

2. Installation Environment:

  - Consider the installation environment when choosing the fuse base. Ensure that it is suitable for outdoor use and can withstand environmental conditions such as temperature fluctuations and moisture.

3. Maintenance:

  - Regularly inspect and maintain the fuse base to ensure its continued functionality. Check for signs of wear, corrosion, or damage, and replace the fuse as needed.

4. Compliance:

  - Verify that the fuse base meets relevant industry standards and regulations. Compliance with safety standards is crucial for the reliable and safe operation of the solar power system.

Conclusion

The 1000Vdc NH0 PV fuse base is a critical component in solar power systems, offering reliable protection, durability, and versatility. Its ability to handle high voltage levels and secure NH0 fuses makes it an essential choice for ensuring the safety and performance of photovoltaic installations. By understanding the features, benefits, and applications of the 1000Vdc NH0 PV fuse base, you can make informed decisions for your solar projects and contribute to the successful operation of renewable energy systems.
